T3DBarGraph

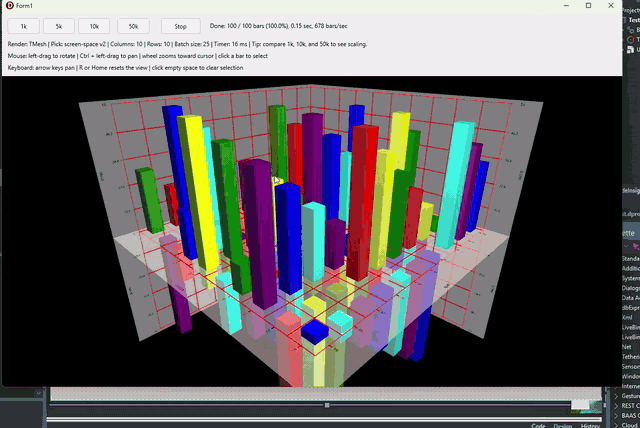

T3DBarGraph is a Delphi / FireMonkey 3D bar chart component built on top of TViewport3D.

It supports dynamic data, positive and negative values, labels, transparent planes, mouse interaction, bar selection, and a mesh-based rendering mode for larger datasets.

Download PDF manual View on GitHub

Main Features

• Delphi / FireMonkey 3D bar chart component.
• Dynamic bar data with row and column labels.
• Positive and negative values.
• Configurable colors for bars, selected bars, grids, planes, labels, and legend.
• Configurable plane transparency through PlaneOpacity.
• Mouse and keyboard navigation.
• Bar selection with a floating 3D legend.
• Mesh-based rendering path for larger datasets.
• Batched loading with BeginDataUpdate and EndDataUpdate.

Current Release

The current public release is v0.1.0.

Prebuilt test executables, when available, are published as GitHub Release assets.

When To Use It

T3DBarGraph is useful when you want a Delphi-native 3D visualization for dataset-style information, especially when rows, columns, and values have a natural visual relationship.

For very dense datasets, the performance test application is the best place to evaluate whether the 3D representation remains readable for your use case.
